Stedi Rokswch-Aux Dual-Battery Rocker Switch

Description

STEDI Rocker Switch for Auxiliary Battery

Single throw ON / OFF switch designed to operate 12-volt driving lights. The switch surface size is 49mm x 25mm and uses a standard din size mounting hole of 36mm x 22mm, which is the standard size in most vehicles. Please check these measurements to ensure they fit correctly.

Features:

• Single Pole Single Throw ON-OFF switch
• Robust design
• The upper backlight light is ON when the switch is pressed UP.
• Lower backlight can be wired to your dash light circuit for constant backlight to switch
• Waterproof rating of IP66.
• Same size as the switches sold at well-known 4×4 store
• Rated 20A 12V / 24v 10A

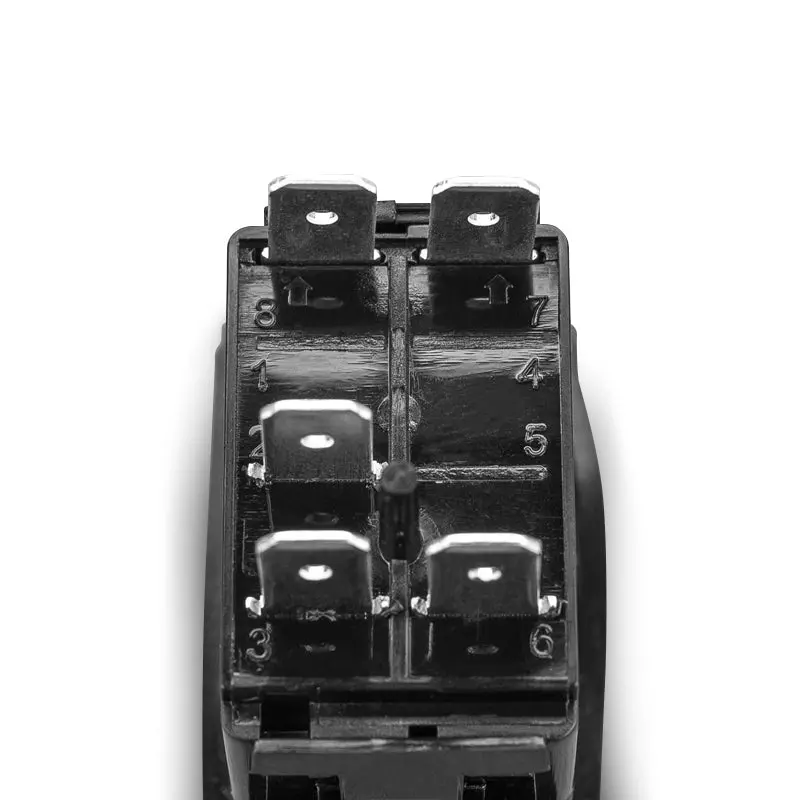

• 5 pin
• A wiring diagram is supplied with the switch.
• Cutout dimensions 21mm x 36.83mm

Specifications:

• Back Light Colour Blue
• Cutout Dimensions 21mm x 36.83mm
• Rated 20A 12v / 10A 24v
• Switch Dimension 49mm x 25mm
