Description
The Nitty Gritty.
Micro Size, Macro Performance
We’ve taken our popular Micro LED Lights to the next level. Integrating a beautiful 2700k amber temperature, the Micro V2 48 LED is designed to punch above its own weight.
Lightweight Convenience
The power and brilliance of the Micro V2 48 LED are packed into a convenient size of 665mm (length) x 25mm (height) x 40.6mm (depth). Did we mention that it weighs 0.8kg?
Low Profile Fitment
The Micro V2 48 LED provides a huge amount of application options. With the ability to fit into the tightest of spaces, you will be kept occupied with opportunities for enhancement.
Key Features at a Glance
- IP67 Ingress Protection
- 6 x 3 Watt CREE LED
- Micro Profile at only 26mm
- Flood Beam – Perfect Rear Light, Awning Light, or bumper or bull bar voids.

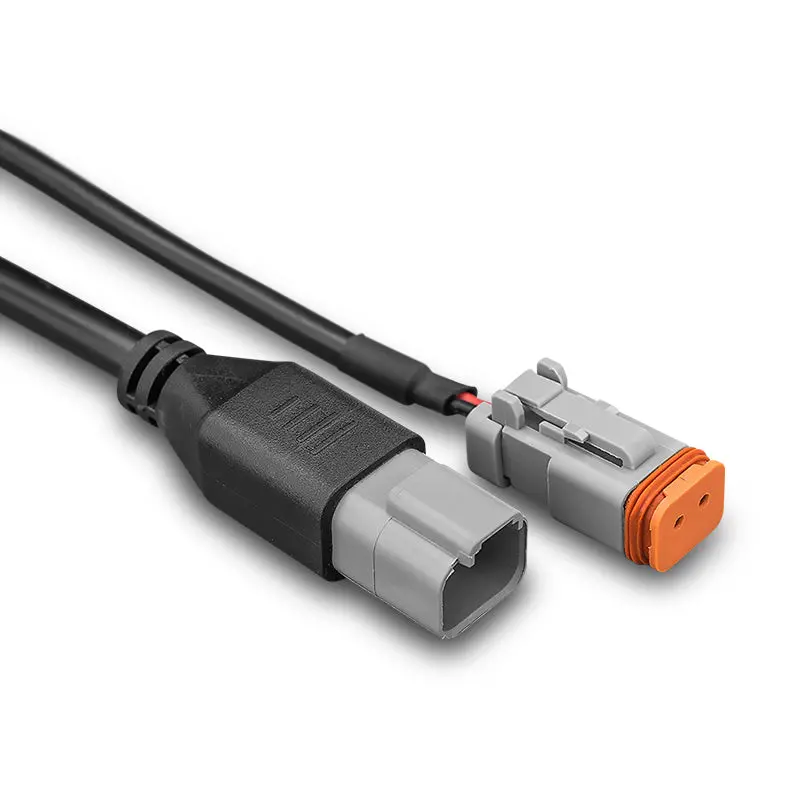

- Waterproof Deutsch Connectors Male and Female with wire tails
Dimensions:
Night Shot:
Specifications:
- Operating Voltage Dc: 10-28 V
- Power Consumption: 48 W
- Amp Draw: 4 A@12 v Or 2.0 A@24 V
- Colour Temperature: 2700 K
- LED 48 X Osram GW PSLR: 32. PM Druiss
- Effective Lumen: 2600lm
- Beam Angle Height: 30° Width: 120°
- Environment Temp: -40° to 60°c
- IP Rating: IP68
- Lens: Polycarbonate with Surface Hardening
- Frame/housing: Extruded Aluminium
- DT Connector: Included
- Mounting Bracket: 304# Stainless Steel
- Lifetime: 30,000hrs
- Size (mm): 665 X 25 X 15
- Weight: 0.8kg
- Cable Length: 400mm
- Certification: CISPR25
What’s In The Box:
- 1 x 72w Micro V2 LED Work Light (Amber)
- 2 x 46mm Side Brackets
- 2 x M8 Bolts
- 2 x M6 Bolts
- 2 x Nuts
- 4 x Flat Washer
- 4 x Spring Washer
- Male & Female Deutsch Connectors
