Description
Oricom Micro Size 5 WATT UHF CB RADIO + ANU220 6.5dBi Antenna

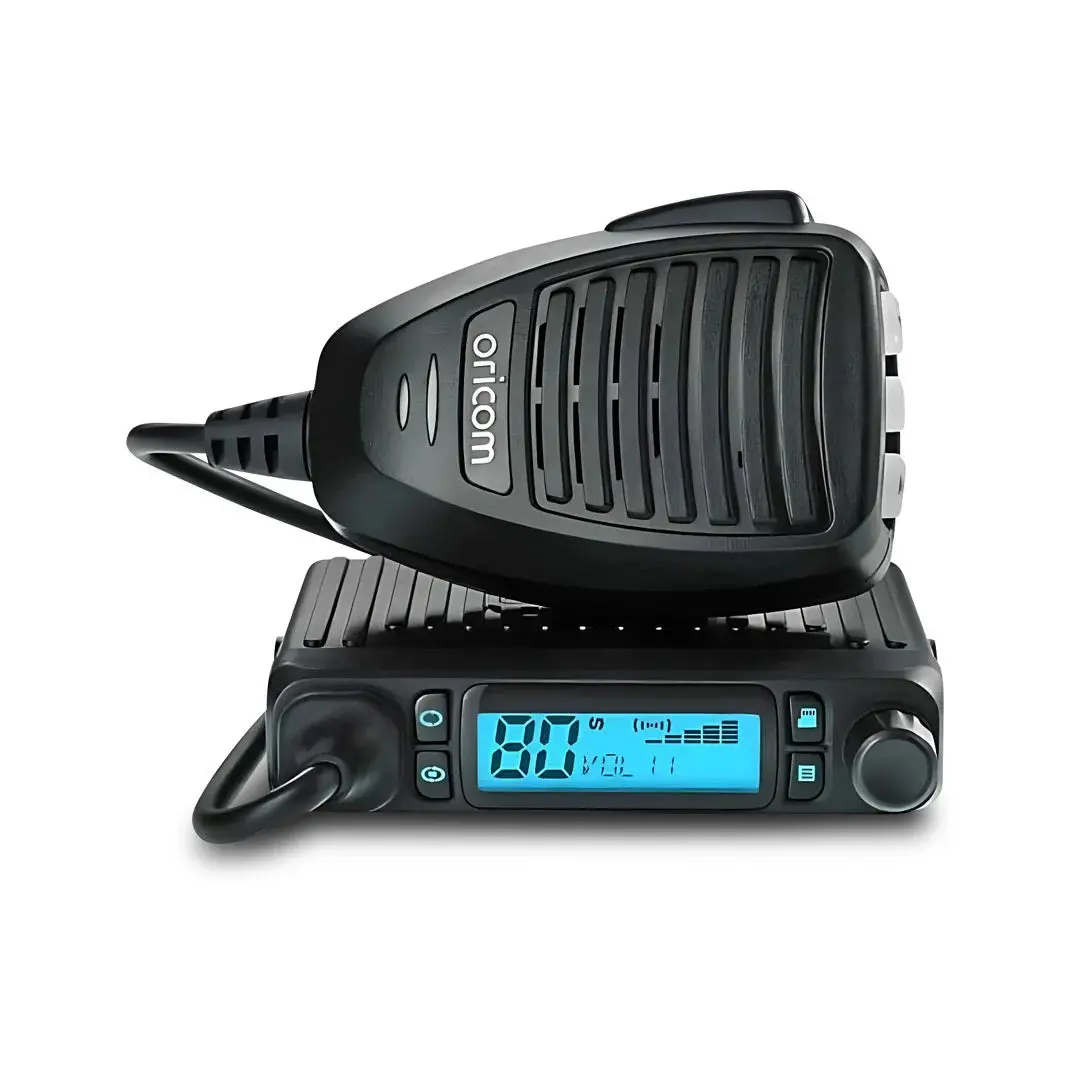

The Oricom DTX4300 Micro Size 5 Watt UHF CB radio is a well-crafted unit, packing a real punch for its ultra-compact size, and is one of the smallest fixed mount UHF CB radios on the Australian market. Pack includes ANU220 6.5dBi Antenna.
Oricom DTX4300VP Features:
- Ultra-compact micro size
- 96 colour LCD backlit display
- Flip LCD function
- Overvoltage alert function
- Heavy duty microphone
- 3 memory groups
- Smart fast scanning (priority/ group memory/ group tone scan)
- Backlight brightness (4 pre-set levels plus auto)
- Rotary volume/channel and squelch control
- Duplex
- 38 CTCSS & DCS codes
- Diecast metal chassis
- Auto power off (off/1h/2h/4h)
- 3.5mm external jack (for optional external speaker)
Oricom DTX4300VP Specifications:
GENERAL:
- Compliance AS/NZS 4365:2011
- Frequency Range TX/RX 476.425 – 477.4125 MHz
- Number of TX/RX Channels 80 UHF CB Channels (75 voice)
- Channel Spacing TX/RX 12.5KHz
- Operating modes Simplex, Repeater TX offset (+750KHz)
- Scanning Speed 50 msec per channel
- Antenna Impedance 50 Ohms
- Operating Volts nominal 13.8VDC
- Operating Volts Range 10 to 16 VDC
- Over Voltage Protection Diode and Voltage regulator system
- Over Current Protection 2 AMP fuse
- Reverse Polarity Protection Shunt diode
- Frequency stability +/- 5 ppm
TRANSMITTER:
- RF Output Power 5 watts max
- Modulation F3E(FM)
- Maximum deviation 2.5KHz
- Spurious Emissions <-30dBm
- TX Audio pre-emphasis +6dB/Octave from 300Hz to 3KHz
- Current consumption during TX 1.7 AMP with 50-ohm antenna termination
RECEIVER:
- Circuit Type Dual conversion superheterodyne
- Intermediate Frequencies
- Maximum useable sensitivity -123dBm for 12dB SINAD
- Audio output power 2 Watts at 8 ohm load
- RX Audio de-emphasis -6dB/octave 300Hz to 3kHz
MECHANICAL:
- Dimensions (H) X (W) X (D) 22.5 (d) x 100 (w) x 76 (h) mm
- Weight 210g transceiver only
