MB Quart NA2-500 Five-Channel Powersports Amplifier – 500 Watts RMS

Description

Big Power, Small Footprint – MB Quart High-Performance Compact 5-Channel Digital Amplifier!

High Performance Compact 5 Channel Digital Amplifier.

4 x 80 Watts @ 4 Ohm + 1 x 200.

Specifications:

• Colour: Black
• Warranty: 2 Years
• Amp Class: Full Range Class D
• Amp Total Channels: 5
• Amp Max Power (watts): 500
• Amp Power @ 2 Ohm (ch x watts): 4 x 80 + 1 x 200
• Amp Power @ 4 Ohm (ch x watts): 4 x 40 + 1 x 100
• Amp Variable High Pass Crossover 12dB per Octave: CH1 & CH2: Switched Full/HPF, CH3 & CH4: Switched Full/HPF
• Amp Variable Low Pass Crossover 12dB per Octave: CH5: LPF 50Hz-150Hz
• Amp Subsonic Filter: 60Hz
• Amp Bass Boost: 0-12dB @ 45Hz
• Amp Variable Voltage: 0.2-9V
• RCA Inputs: 2 Pair, RCA (Front/Rear), 1 Pair RCA (Subwoofer) Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.
• Operation Mode: Four channel and with dedicated subwoofer channel: Unique design allows this amplifier to power full range speakers with a dedicated channel for a subwoofer.
• Crossover Type: Switched FULL / LPF / HPF: Complete control of amplifier signal, essential when using two or more amplifiers.
• Class / Topology: Full Range Class D: Highly efficient circuit topology which helps the amplifier develop a lot of power in a very small heatsink.
• Output Device Technology: PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.
• Heat Sink: Aluminum: Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration.
• Power Supply: Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.
• Output Connections: Quick Disconnect Wires, RCA Connections: Quickly remove amplifier when you are putting machine up for the winter of as a security precaution.
• Connection Type: Nickel-plated connections: Nickel plated corrosion resistant connections.

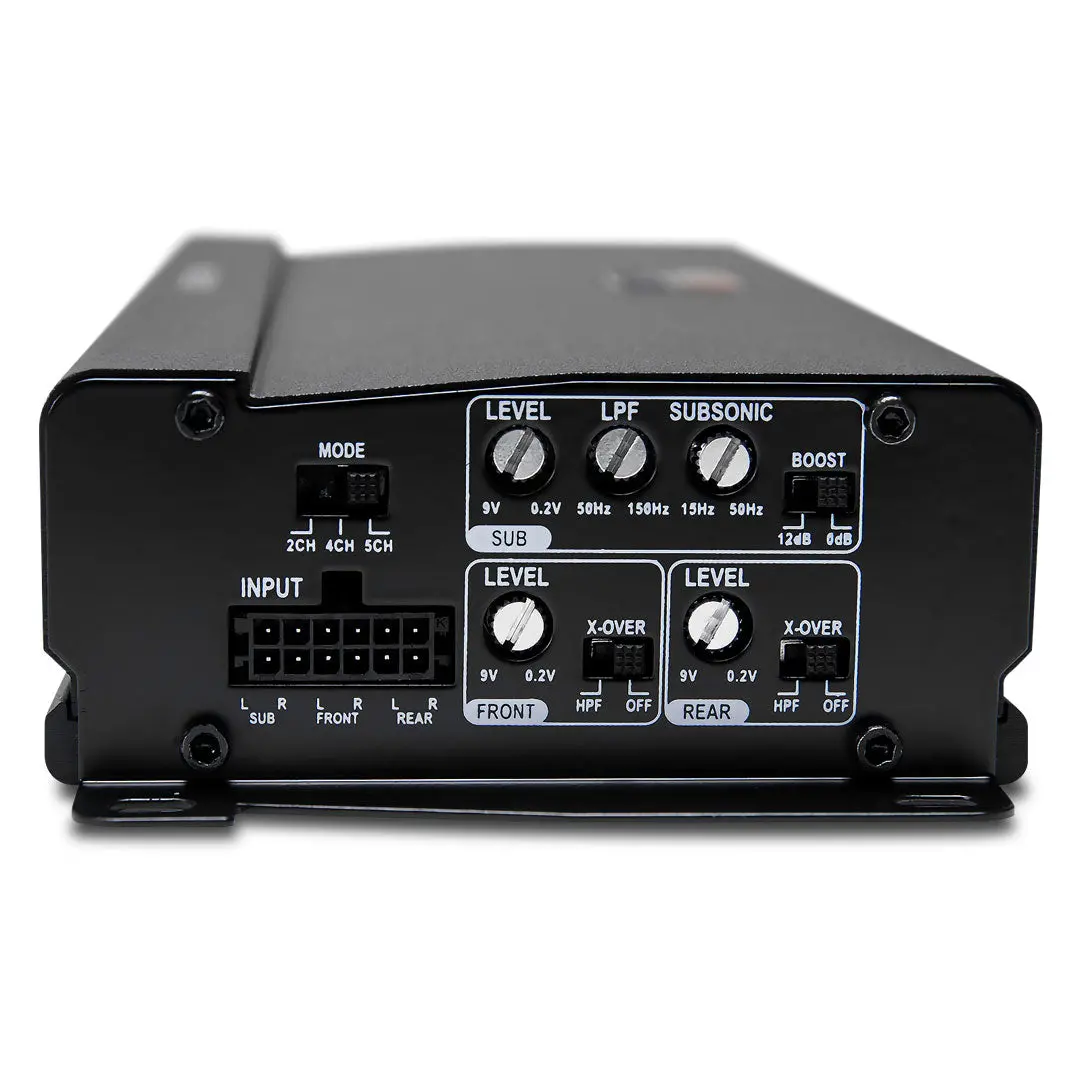

• LED System Protection Circuitry Diagnostics: Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel.
• Bass Remote Included: Included: Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.
