Description

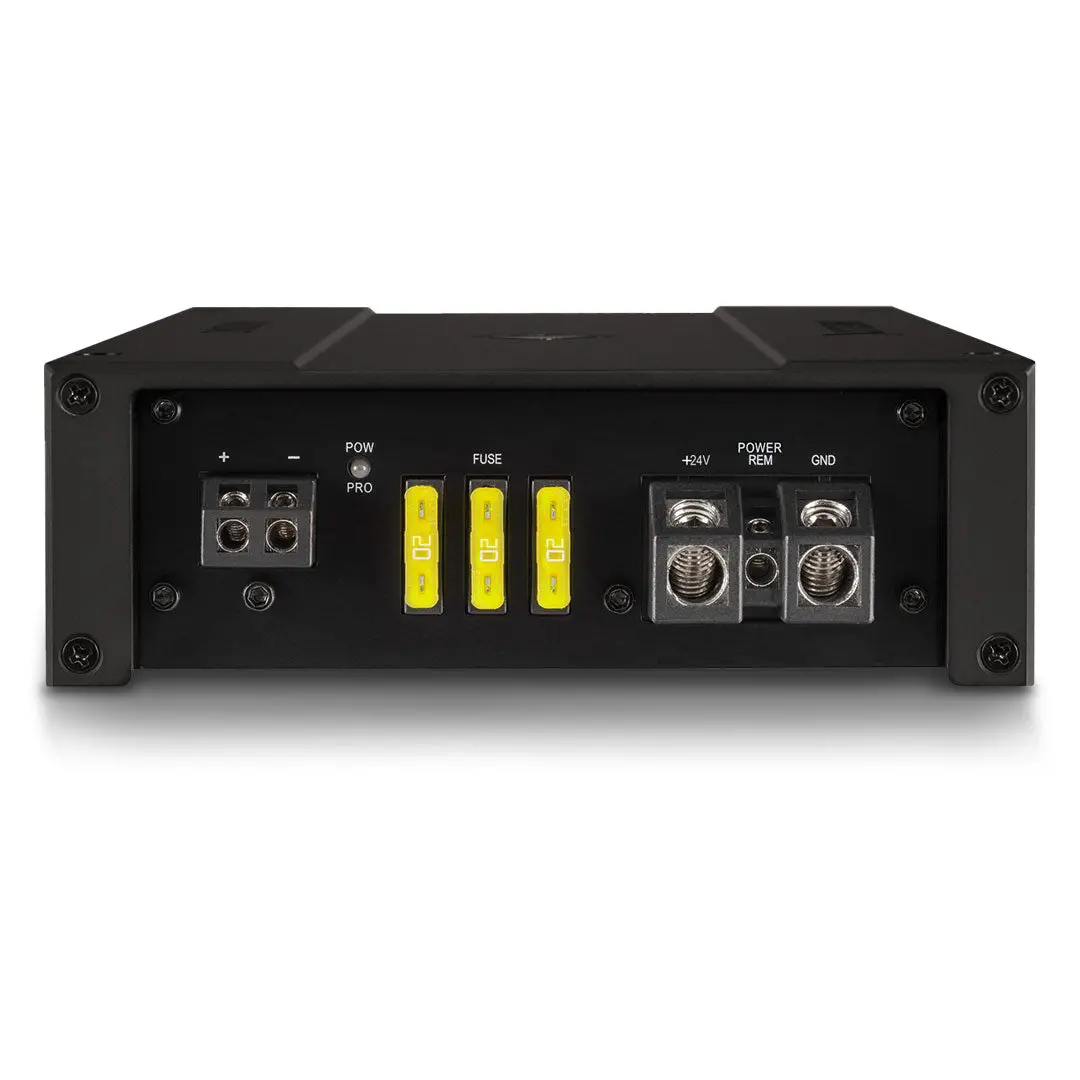

HELIX M ONE X 24 Volt | 1 Channel Digital Amplifier | 1030W RMS 1Ω Stable
Small. Efficient. Commercial Ready.
Experience compact 24V digital power with HELIX M ONE X 24V Edition’s advanced Class D technology—delivering 1030W RMS output in minimal dimensions with smart high-level input featuring ADEP circuit protection and TwinPower Link capability.
Small, efficient and uncompromisingly stable – the M ONE X – 24V Edition is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE X – 24V Edition a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel. And for even more output power, two M ONE X – 24V Edition amplifiers can be combined to one single powerhouse – thanks to the TwinPower Link. In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to the minimal dimensions.
M ONE X 24 Volt Features:
- Small footprint Class D amplifier with up to 1,180 Watts RMS output power @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
- Start-Stop capability down to 12V supply voltage
- Smart highlevel input with ADEP circuit and Auto Turn-On function
- Integrated, active crossover with lowpass, bass boost, subsonic and phase control
- TwinPower Link for connecting two amplifiers in bridged mode
- Bass remote control for volume adjustment
- Low heat dissipation thanks to extraordinary efficiency
- 24V power supply designed for commercial and truck applications
- Advanced Diagnostics Error Protection (ADEP) prevents OE radio error messages
- Maintains factory features like fader function with OE integration
- Compact dimensions for easy installation in tight spaces
- Professional Class D efficiency with minimal power consumption
- Auto Turn-On function for seamless operation
- Ultra-compact design without performance compromise
- Wide operating voltage range (18-36V) for commercial reliability
Specifications:
- Channels: 1 Channel | Mono
- Built-in DSP: No
- RCA Input: 2x RCA
- High-Level Input: 2x High level
- Power W RMS/ch | 4Ω: 400W
- Power W RMS/ch | 2Ω: 700W
- Power W RMS/ch | 1Ω: 1030W
- Max Output Power: 1180W RMS @ 1Ω
- Class: D
- Max Input Sensitivity: 13V (High-level), 6V (RCA)
- THD+N: 0.20%
- RCA Out: 0x | No Pre-out
- Frequency Response: 10 Hz – 250 Hz
- Bass Boost: 0-12 dB / 30-80 Hz
- Lowpass: 50 Hz – 250 Hz adjustable
- Subsonic: 10 Hz – 50 Hz adjustable
- Phase: 0-180° adjustable
- Signal-to-Noise Ratio: 95 dB (A-weighted)
- Damping Factor: 150
- Operating Voltage: 18-36V (max. 5 sec. down to 12V)
- Operating Temperature: -40°C to +70°C
- Dimensions (H x W x D): 50 x 320 x 154mm
- Fuse: 3 x 20A Maxi-fuse (APX)
- Power Rating: DC 24V ⎓ 53A max.
- Idle Current: 400mA
Scope of Delivery:
- 1 x Amplifier HELIX M ONE X – 24V Edition
- 1 x Cable remote control
- 1 x Mounting material
- 1 x Instruction manual
Perfect for:
- Commercial vehicle installations, truck audio systems, 24V system applications, fleet installations, heavy-duty mobile equipment, and any 24V application requiring maximum power output with minimal footprint and professional reliability.
