Description
Improve Vehicle Maneuvering Capability by Displaying Blind Spots Not Normally Visible to the Driver!

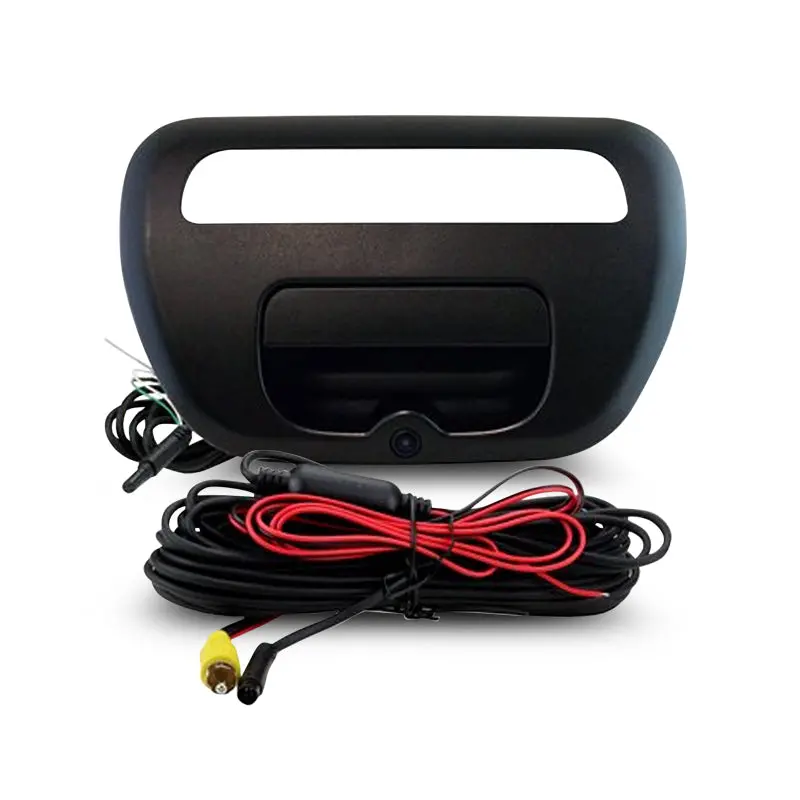

Ford Ranger Tailgate Reverse Camera
The Echomaster PCAM-FD9 camera is designed to improve safety when reversing by providing high-quality images of the surrounding areas and obstacles in the vicinity of the vehicle. It will also improve vehicle maneuvering capability by displaying blind spots not normally visible to the driver.
Specifications:
- Image Sensor: CMOS
- Resolution: 640 x 480
- Max Relative Aperture: 2.2 (+/-5%)
- Iris: Fixed
- Lens Construction: 3 Elements + 1 IR Filter
- Field-Of-View: D: 168º / H: 136º / V: 100º
- Coating: Hard/Anti-Fog/IR-Cut
- Compatible: NTSC/PAL
- Video Output: 1.0V p-p75Ohm
- Minimum Illumination: 0.1LUX
- Parking Lines: Displayed
- Operating Voltage: 12V DC (Negative Ground)
- Current Consumption: 33mA @ 13.8V
- Operating Temperature: -20ºC ~ +70ºC
- Waterproof Rating: IP68
- Vehicle Compatibility: Ford Ranger 2011 – 2015 (PX MK1)
