Echomaster HDBJK Blind Spot Monitoring Camera System for Jeep Wrangler JK

Description

Echomaster HDBJK Blind Spot Camera Kit Suitable for Jeep Wrangler JK

Enhance your driving confidence and safety with the Echomaster HDBJK Blind Spot Camera Kit — designed for seamless installation on Jeep Wrangler JK and JKU models.

The Echomaster Blind Spot Camera Kit provides a clear view of your vehicle’s sides, reducing blind spots and improving lane change safety. Perfect for off-road adventures or city driving, this kit is designed for simple installation with pre-assembled vehicle-specific brackets and cameras. Whether your Jeep’s doors are on or off, you’ll have dependable visibility when it matters most.

Key Features & Benefits:

• Added Safety: Gain better side visibility to avoid dangerous lane changes and improve situational awareness.
• Works With Doors On or Off: Perfect for Jeep Wrangler JK and JKU owners who frequently go doorless.
• Pre-Assembled Kit: Includes cameras, brackets, and harnesses for straightforward installation.
• Standard 5-Pin Echomaster Connector: Comes with a 6.9ft extension harness for flexible setup.
• Reversible Installation: Mount without permanent modifications to the vehicle.
• Foam-Backed Mounts: Protects your Jeep’s paint during installation.
• Selectable AHD or Composite Video Output: Compatible with aftermarket monitors and Echomaster’s HEIGH10® system.
• Compatible With Multiple Displays: Works with any monitor featuring a composite NTSC input (AVS41 adapter required, sold separately).
• Durable & Reliable: IP67 waterproof rating, rugged design, and a 3-year warranty.

Technical Specifications:

• Model: HDBJK
• SKU: HDBJK
• Brand: Echomaster
• Type: Blind Spot Camera Kit
• Resolution: AHD 720P (selectable) / CVBS 480P (selectable)
• Sensor: CMOS
• Viewing Angle: 80°
• Image Options: Mirrored or non-mirrored (selectable)
• Parking Lines: On/Off selectable
• Light Sensitivity: Operates at 0.1 LUX
• Water/Dust Resistance: IP67 rated
• Output Formats: AHD / Composite NTSC
• Compatibility: Jeep Wrangler JK (2-door) and JKU (4-door)
• Warranty: 3 years

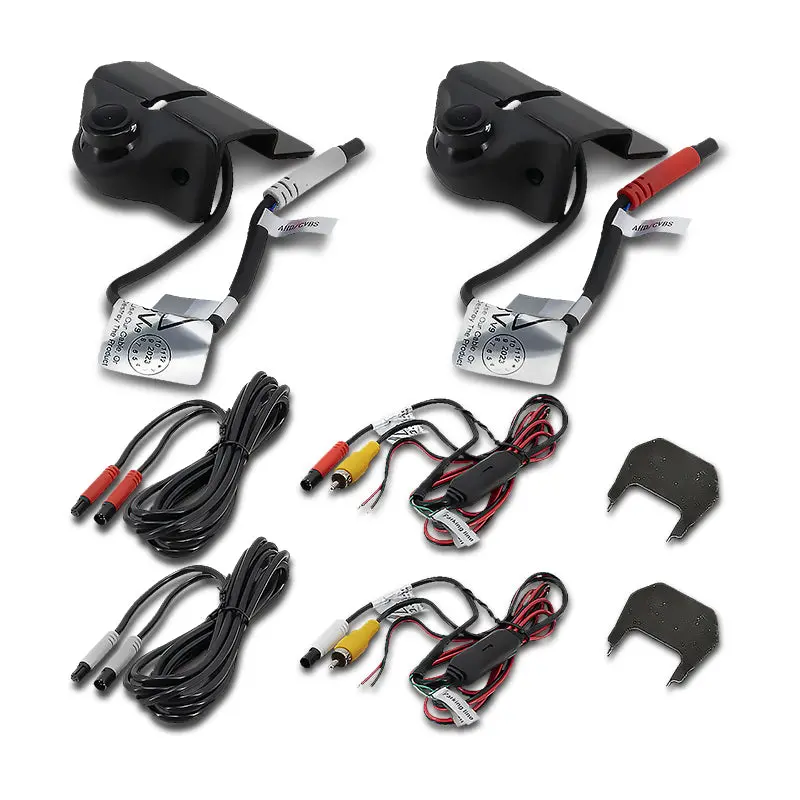

What’s Included in the Kit:

• 2x Blind Spot Cameras
• 2x Mounting Brackets
• 2x Camera Extension Cables
• 2x Camera Power/Video Adapters
• 1x U-Shaped Camera Angle Adjustment Tool
• 1x Warranty Card

Installation Applications:

• Blind Spot Monitoring: Reduce dangerous lane-change blind spots.
• Off-Road Visibility: Improve side awareness when tackling challenging trails.
• Customizable Setup: Works with Echomaster HEIGH10® or any compatible aftermarket display.

Frequently Asked Questions

• Will this work if I remove my Jeep’s doors?
  Yes, the kit is designed for full functionality with or without doors installed.
• Is this kit pre-assembled?
  Yes, it includes pre-mounted cameras and brackets for fast installation.
• Can I connect these cameras to an aftermarket display?
  Yes, they work with compatible monitors and the Echomaster HEIGH10®. An AVS41 adapter is required for composite NTSC monitors (sold separately).
• Is it weatherproof?
  Yes, the cameras have an IP67 rating for dust and water protection.
• Does it come with a warranty?
  Yes, it includes a full 3-year Echomaster warranty for peace of mind.
