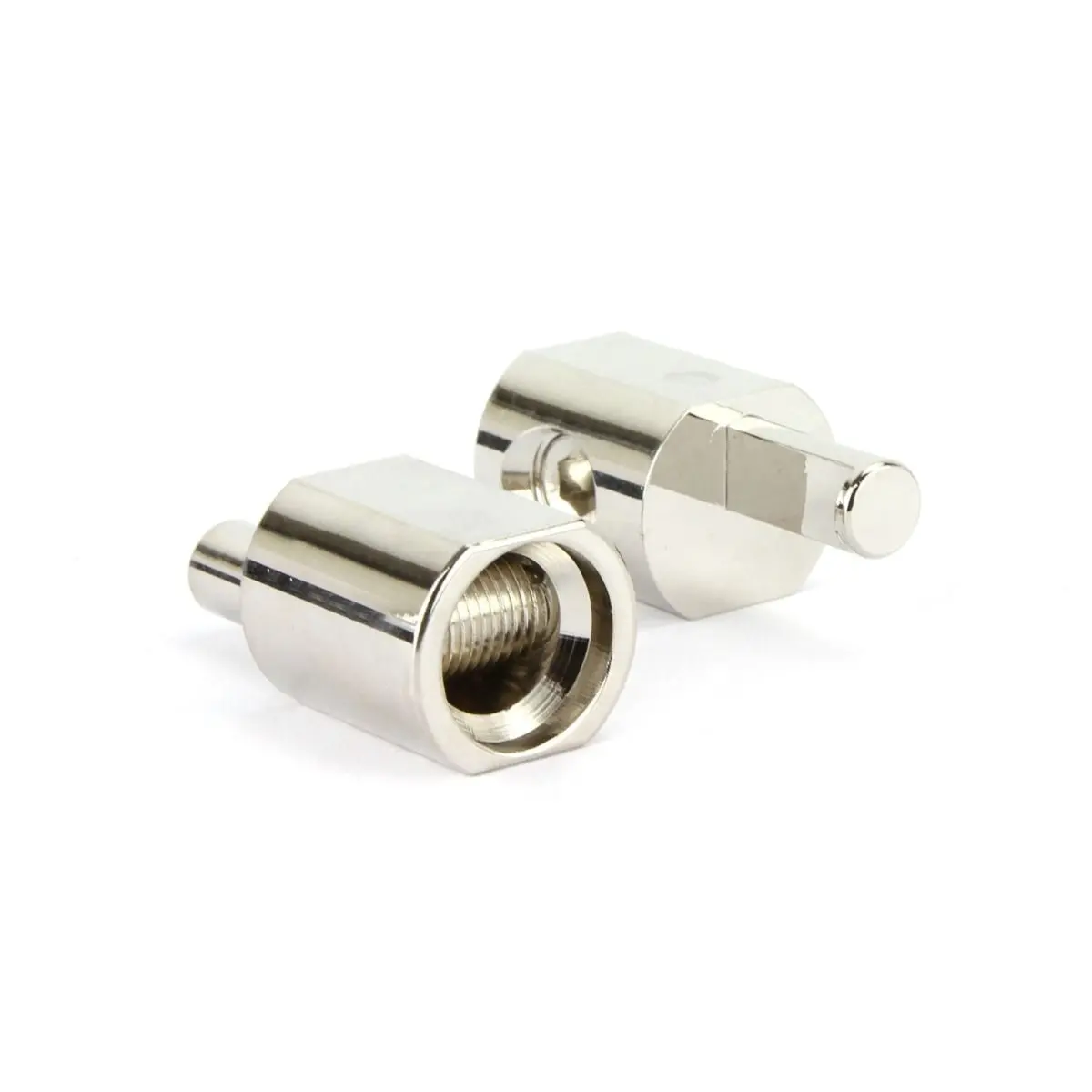

DNA WCR004 Heavy-Duty Audio Cable Reducer 0 Gauge to 4 Gauge – 2 Pack
Professional cable reducers for high-current audio installations requiring gauge adaptation
The DNA WCR004 Heavy-Duty Audio Cable Reducer enables connection of 0/2 AWG power cables to 4 AWG amplifier inputs, providing essential gauge adaptation for professional car audio installations. This 2-pack includes one reducer for power and one for earth connections, featuring nickel-plated alloy construction that prevents corrosion while maintaining maximum current pass-through capability.
Engineered for high-current audio applications where thick power cables must connect to smaller amplifier terminals, these reducers accommodate cables up to 0 AWG with secure hex-terminated screw-in wire clamps. The 8mm diameter output terminals feature retention lips to prevent disconnection from amplifier sockets.
DNA WCR004 Key Features & Benefits:
- Gauge Adaptation: Reduces 0/2 AWG cables to fit 4 AWG amplifier inputs without current loss
- Complete Power Solution: 2-pack provides both power and earth connection reducers
- Nickel-Plated Construction: Corrosion-resistant finish ensures long-term reliability and conductivity
- Maximum Current Flow: Alloy construction maintains full current capacity without voltage drop
- Secure Connection: Hex-terminated screw clamps provide reliable cable retention
- Amplifier Compatible: 8mm terminals with retention lips prevent accidental disconnection
Technical Specifications:
- Model: DNA WCR004
- SKU: WCR004
- Input Gauge: 0/2 AWG maximum
- Output Gauge: 4 AWG equivalent
- Cable Input Width: 12.5mm maximum
- Output Terminal: 8mm diameter with retention lip
- Construction: Nickel-plated alloy
- Connection Type: Hex-terminated screw-in wire clamp
- Pack Quantity: 2 pieces (1 power, 1 earth)
- Current Capacity: Maximum current pass-through design
Installation Applications:
- High-Power Car Audio: Connecting heavy gauge power cables to amplifiers with smaller terminals
- Competition Audio Systems: Professional installations requiring maximum current flow
- Marine Audio: Boat audio systems where corrosion resistance is critical
- Commercial Audio: Professional sound system installations requiring gauge adaptation
- Custom Audio Builds: Enthusiast installations mixing different cable and equipment specifications
Frequently Asked Questions
Why do I need cable reducers? When using thick 0/2 AWG power cables with amplifiers that only accept 4 AWG terminals.
Will this affect my amplifier’s power output? No, designed for maximum current pass-through without voltage drop or power loss.
Can I use both reducers for power connections? One is designed for power, one for earth – using as intended ensures proper installation.
Are these suitable for marine applications? Yes, nickel-plated construction provides corrosion resistance for marine environments.
How do I ensure secure connection? Use hex tool to properly tighten screw clamps for secure cable retention.
