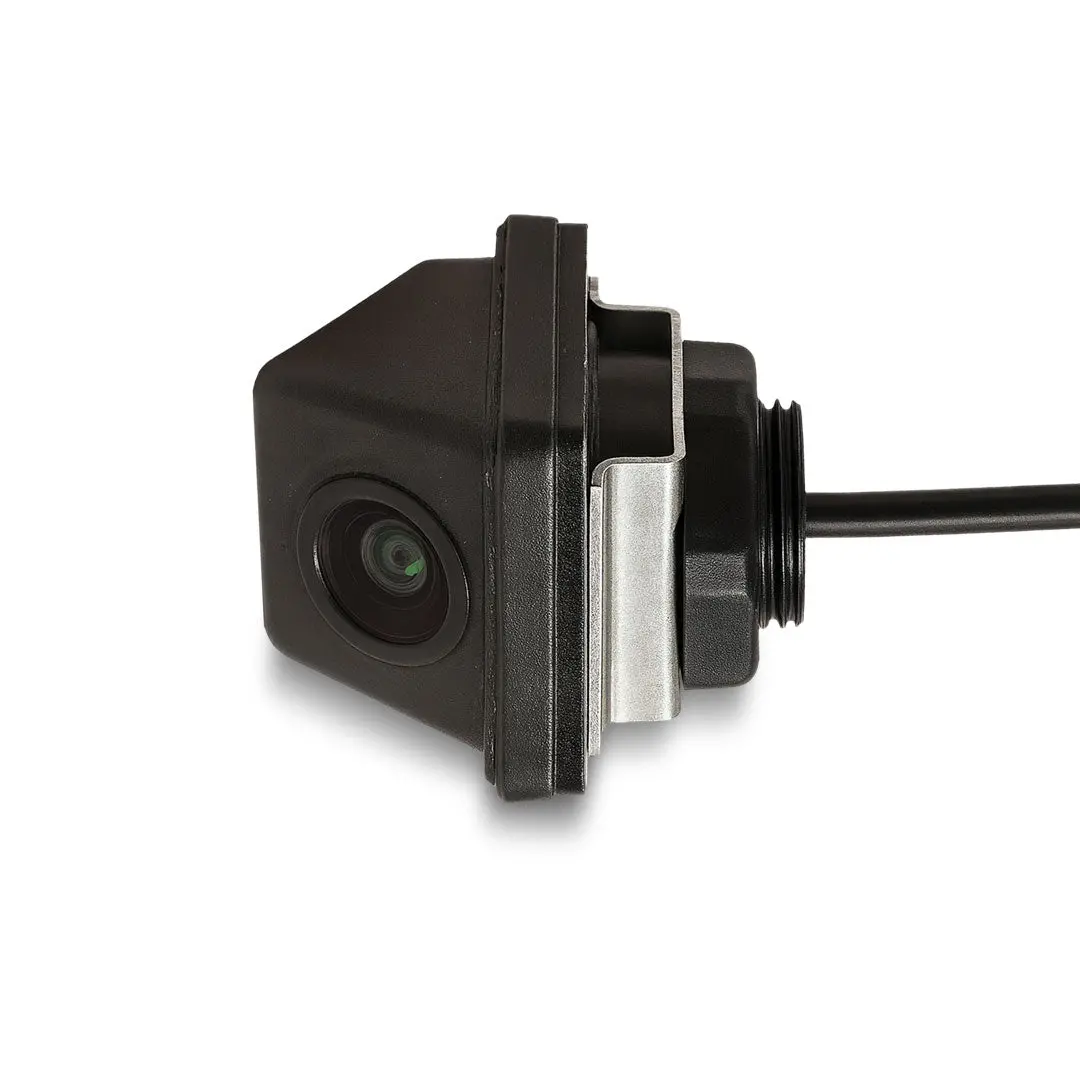

DNA RCO170 | CMOS Reverse Camera – OEM Stalk Mount, PAL/NTSC, 170° Wide-Angle
The DNA RCO170 is a compact CMOS reverse camera built for clean OEM-style installations, delivering exceptional rear visibility with selectable video formats and advanced weatherproof protection. Ideal for drivers looking to integrate a discreet, high-quality reversing solution into their vehicle’s design.
Key Features & Benefits:
- OEM Design: Integrated stalk mount with self-locking plate and nut for seamless vehicle fitment
- PAL/NTSC Selectable: Easily switch formats by cutting a control wire (default: PAL)
- Mirror Image & Parking Guide Lines: Built-in assist functions for safe reversing
- 170° Viewing Angle: Wide field of view for full rear coverage
- Waterproof Construction: IP68 rated for full weather resistance
- Professional Look: Neat concealed wiring for a factory-like finish
Product Specifications:
- Sensor Type: CMOS
- Video Format: PAL or NTSC (Selectable)
- Resolution: 976(H) x 592(V)
- Horizontal Resolution: 700 TV Lines
- View Angle: 170°
- Electronic Shutter: 1s–1/10000s
- Min. Illumination: 0.01 Lux
- SNR: ≥ 45.0 dB
- Power Supply: DC 6V–15V ±0.5V
- Consumption: 100mA ±10%
- Waterproof Rating: IP68
- Video Output: 1.0V±0.5Vp-p 75Ω
Dimensions:
- Camera Body: 29mm (W) x 22mm (H) x 32mm (D)
- Mounting Hole Size: 22mm Diameter
For professional installers and vehicle owners who want a clean and secure reverse camera integration, the DNA RCO170 delivers OEM precision with all the essential features for safe and reliable backing.
