Description

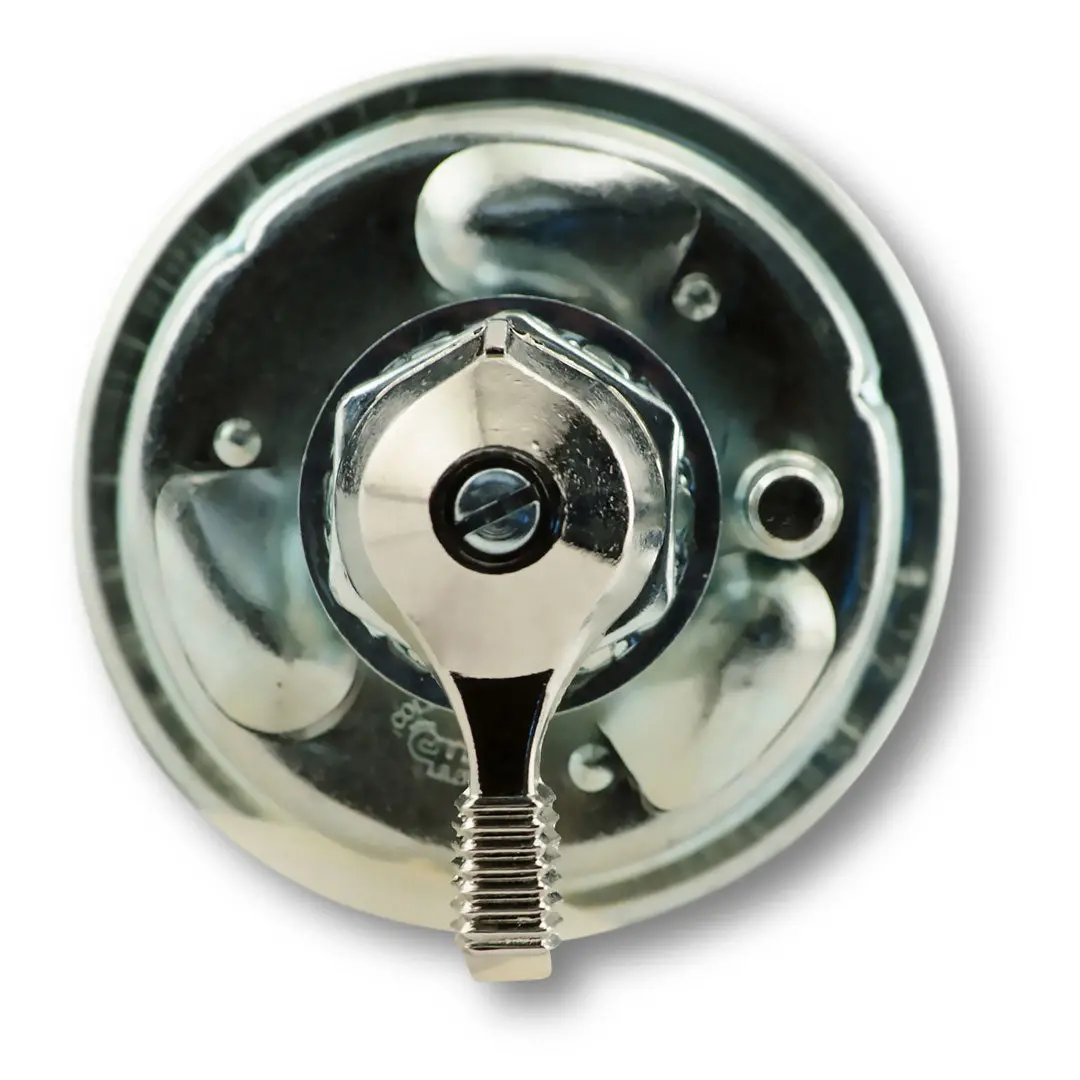

Cole Hersee Dual Battery Master Switch Dpst On – Off
Features:
- This switch can be used to switch positive & negative at the same time or for two separate circuits
- 6V – 36V multivoltage
- 125A continuous x 2
- 750A intermittent x 2
- DPST On / Off
- Suitable for two high current loads
- Silver contacts, chrome lever
- Weather resistant, O-ring sealed
- Battery 4 x stud 3/8″-24 studs
- Indexing pin
- Mounting stem 3/4″-24 thread, L 13mm
- Suits panel thickness to 6.5mm
- Dimensions: H 110 x Ø 67
- Lockout use 24505-01BL, 24505-01RBL, 24505-01YBL or ACX3417BL
Specifications:
- Warranty One Year
- Number of Speeds 1
- Number of Terminals 4
- Power Rating Not Applicable
- Switch Action On – Off – DPST
- Voltage 12 or 24
- Lamp Colour/s Not Applicable
- Mount Diameter 22mm
- Mount Length 6mm
- Note Lockout options include ACX3417BL, 24505-01BL, 24505-01RBL or 24505-01YBL
- Number of Poles 2
- Number of Positions 2
- Switch Type Battery Master / Isolation
- Switch Illumination Non Illuminated
