Description

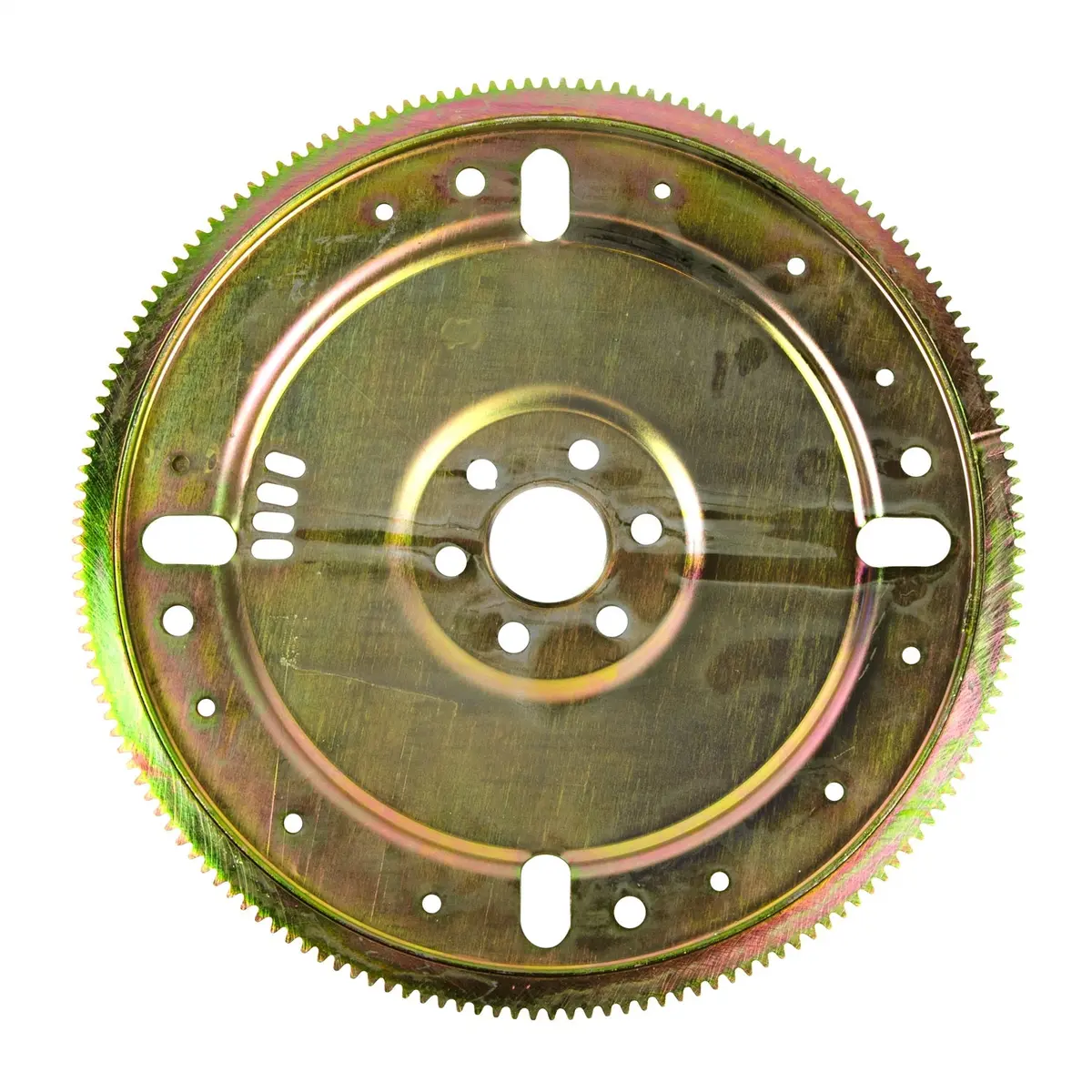

As performance levels increase, an O.E. style flexplate just won’t cut it and a stronger option is a necessity to prevent transmission and/or converter failure. B&M has you covered with our high performance flexplate designed for 1986 to 1997 small block Chevy V8 engines (externally balanced) with one piece rear main seal. Features include high tensile strength steel construction to resist elongation and cracking, 10.75 inch bolt pattern, 153 tooth ring gear with double-sided welds for added strength and comes with SFI 29.1 safety certification insuring the ultimate in safety and performance. The assembly is then Zinc plated and treated with a Chromate Conversion Coating for added corrosion resistance and durability. B&M SFI approved flexplates are ideal for extreme duty race applications as well as street cars, tow vehicles or other vehicles needing the added protection and toughness that B&M has been delivering since 1953. Compatible with Powerglide, TH350, TH400 and TH700R4 automatic transmissions.
- NHRA/IHRA Legal For All Classes
- Includes SFI Certification Sticker
- Ideal For Street Applications
- To Extreme Duty Racing
- To High RPM Use
Additional Attributes:
- GTIN: 00019695202385
- Balance: External
- Crankshaft Bolt Hole Quantity: 6
- Dual Pattern: Yes
- IHRA Legal: Yes
- Item Weight: 6.000 lbs.
- NHRA Accepted: Yes
- Outside Diameter: 12.840 in.
- SFI Approved: Yes
- SFI Certification Sticker: Included
- Timing Marks: 153
- WARNING CA Proposition 65: No
Extened Information:
- Emissions : Emission verification to be determined in ACES, vehicle application data.
- Life Cycle Status: Available To Order
Packaging:
- Quantity of Each: 1
- Package UOM: EA
- Dimension: 14.0000 x 14.0000 x 1.0000 inches
